BIM Packages

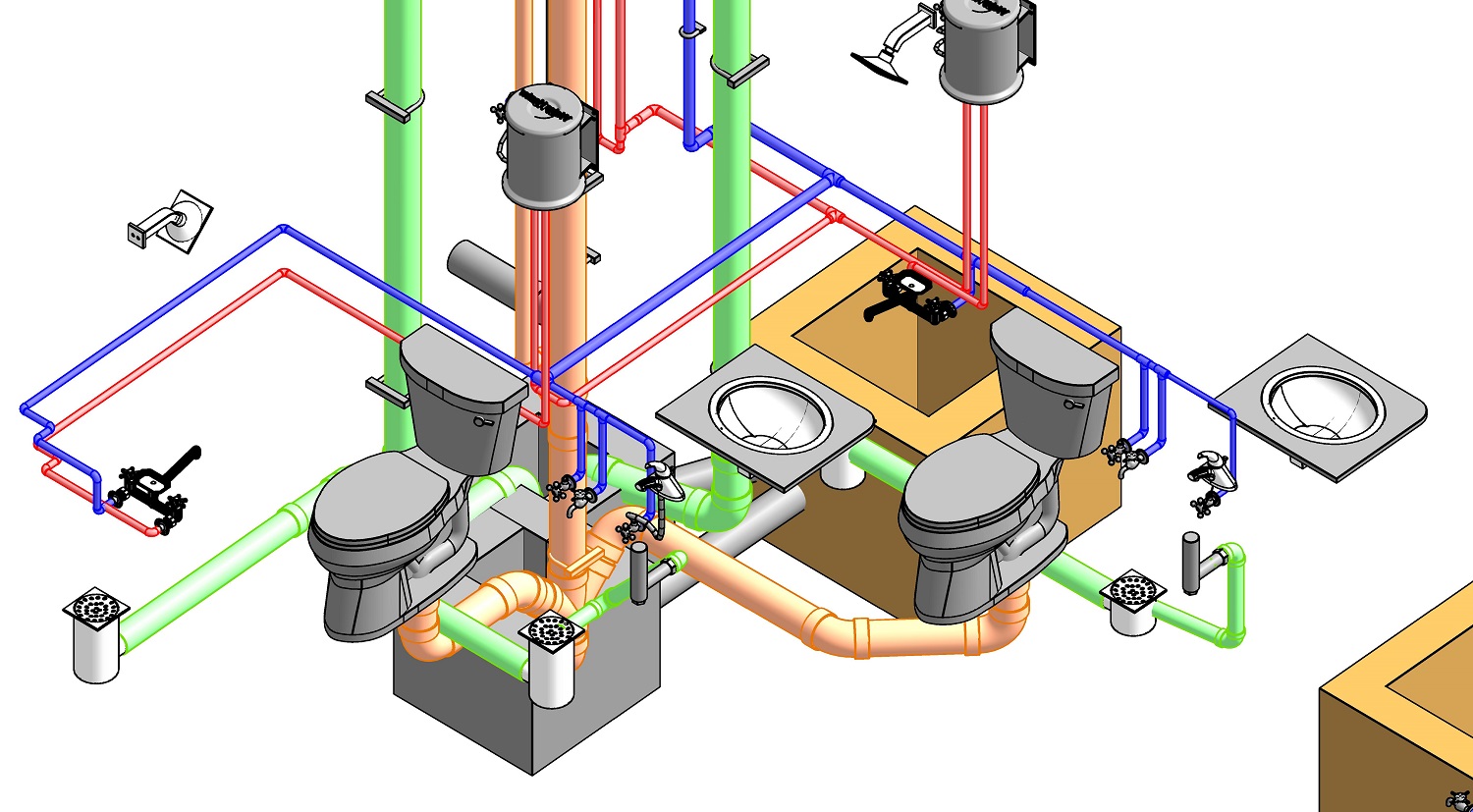

Domestic Package

Detailed BIM modeling of domestic water systems including hot and cold water distribution, sanitary ware, and plumbing fixtures. Fully coordinated and clash-free.

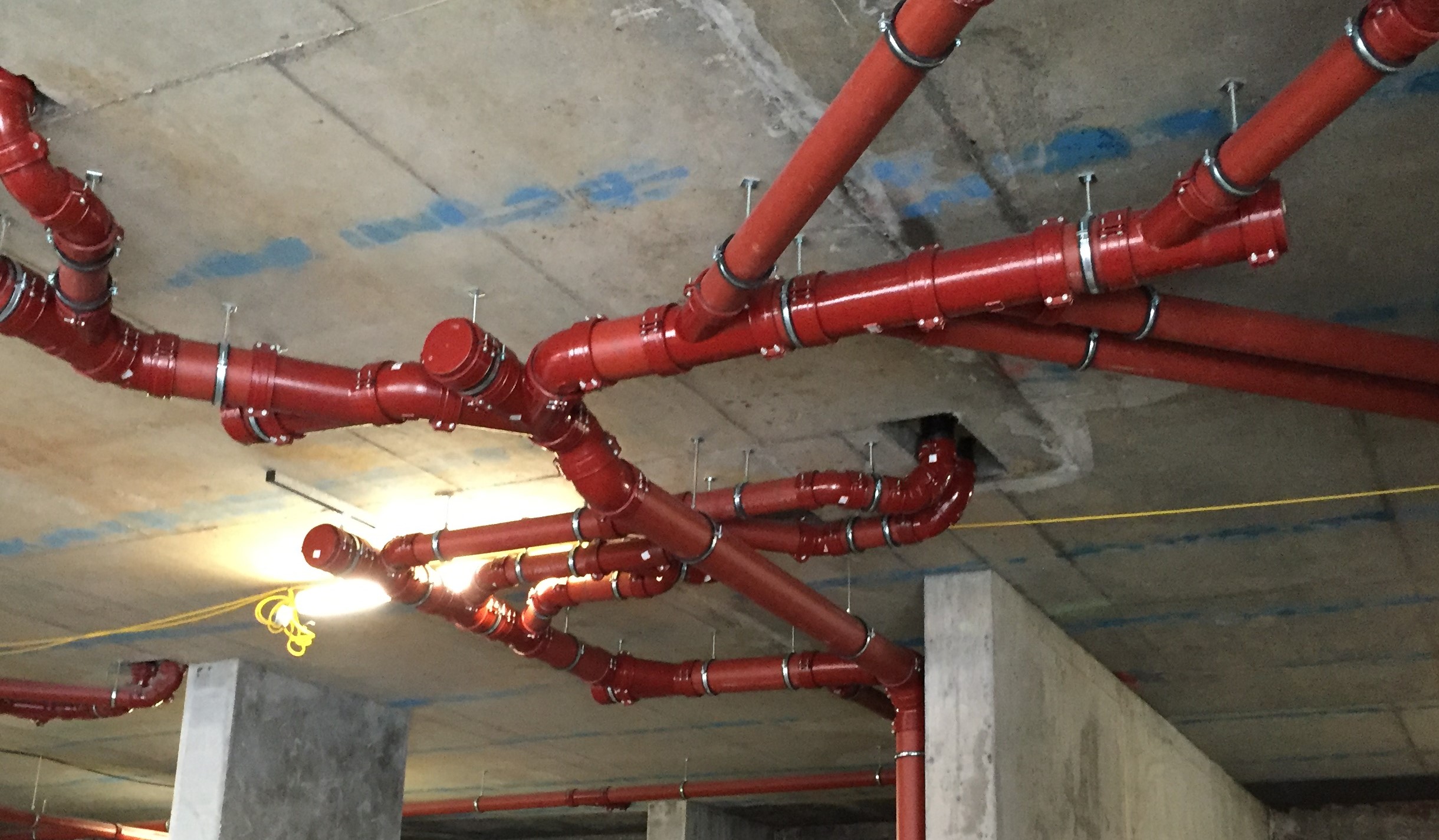

Drainage Package

Comprehensive drainage system modeling including soil stacks, waste pipes, vent pipes, and rainwater downpipes. Includes all fittings and connections.

Fire Package

Advanced fire protection system modeling including:

• • Foam Systems
• • 3D Fire Elements

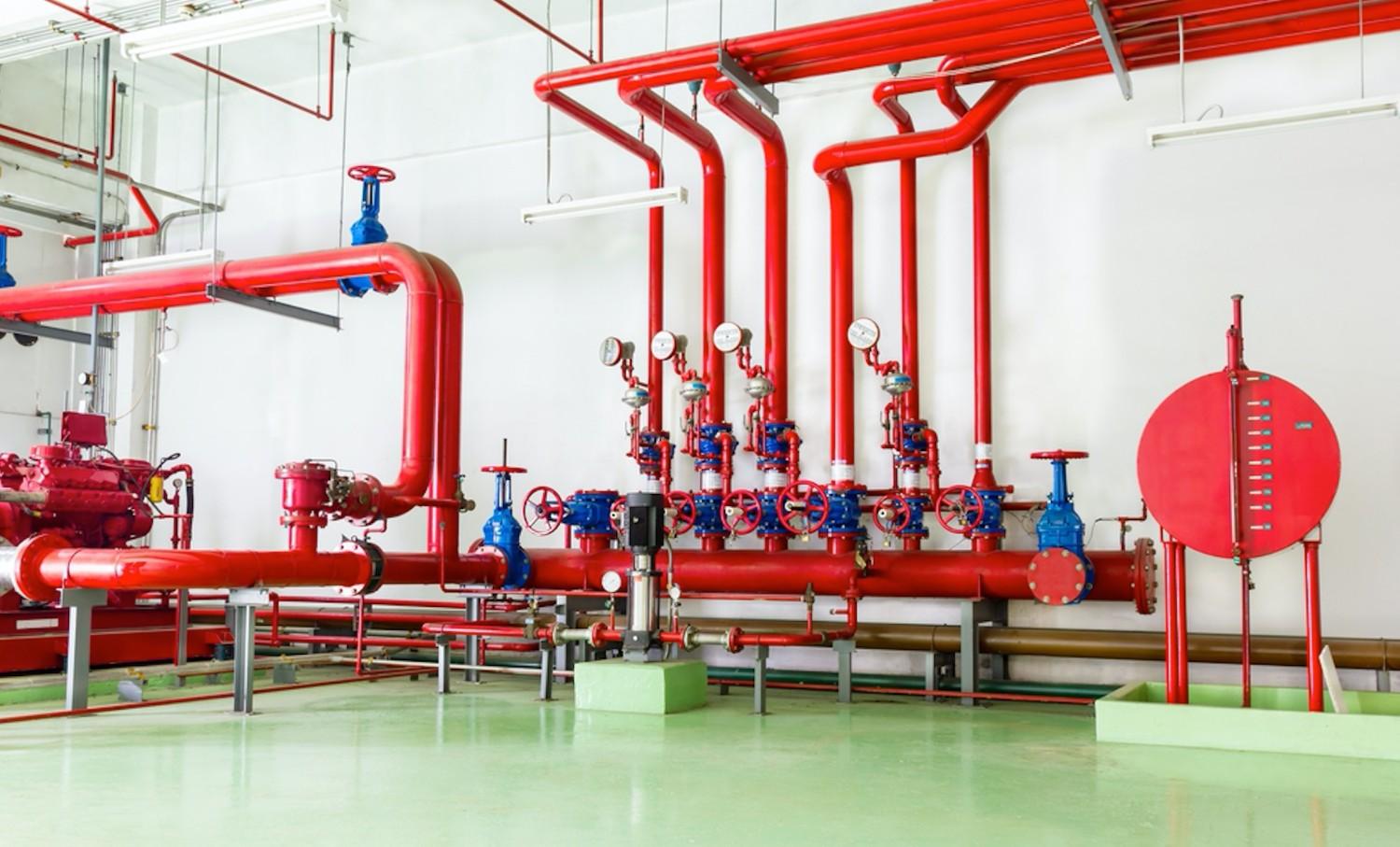

Fire Package

Complete fire protection system modeling including:

• • Gas Suppression Systems
• • Foam Systems
• • Dry Riser Systems

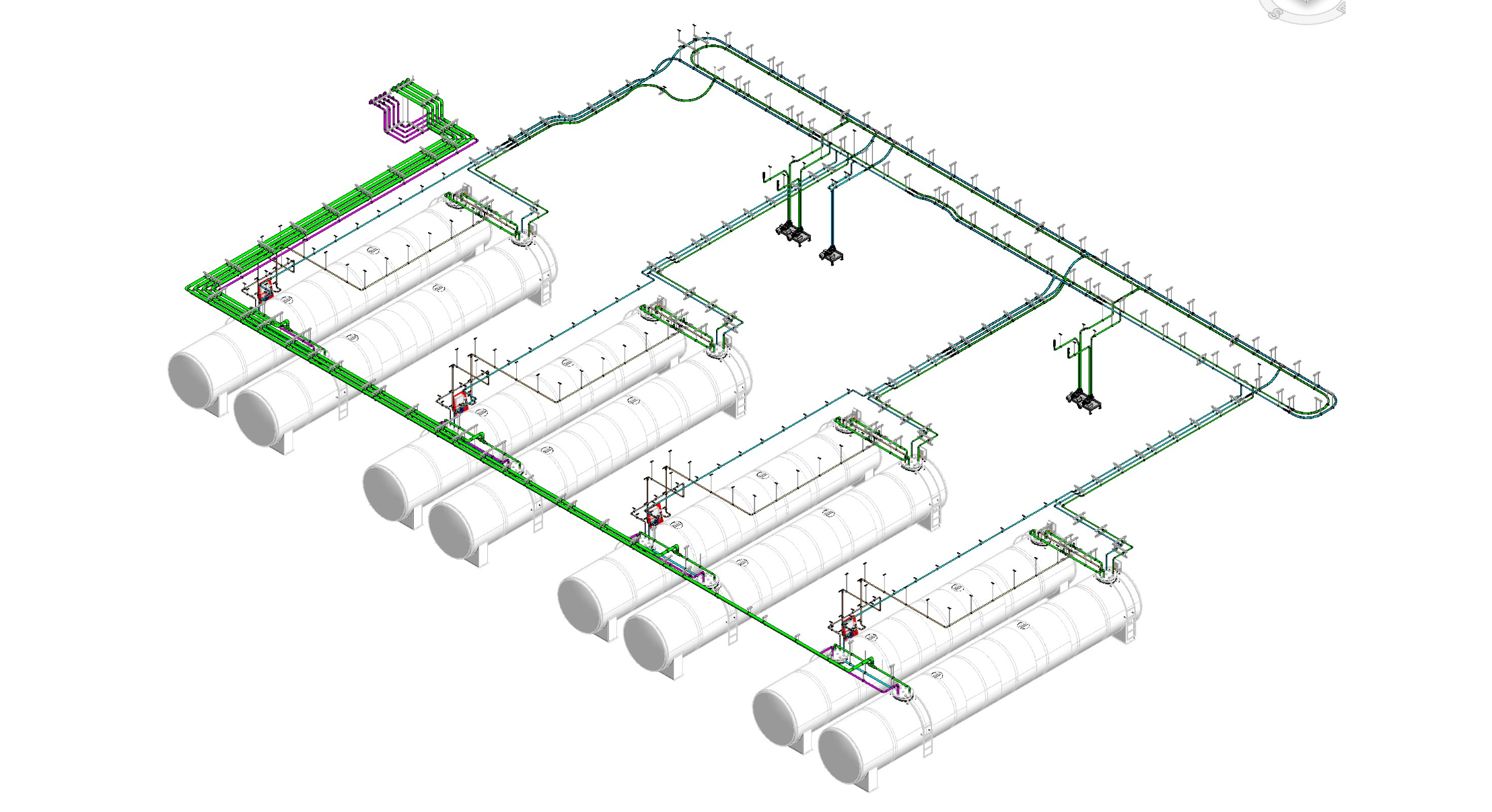

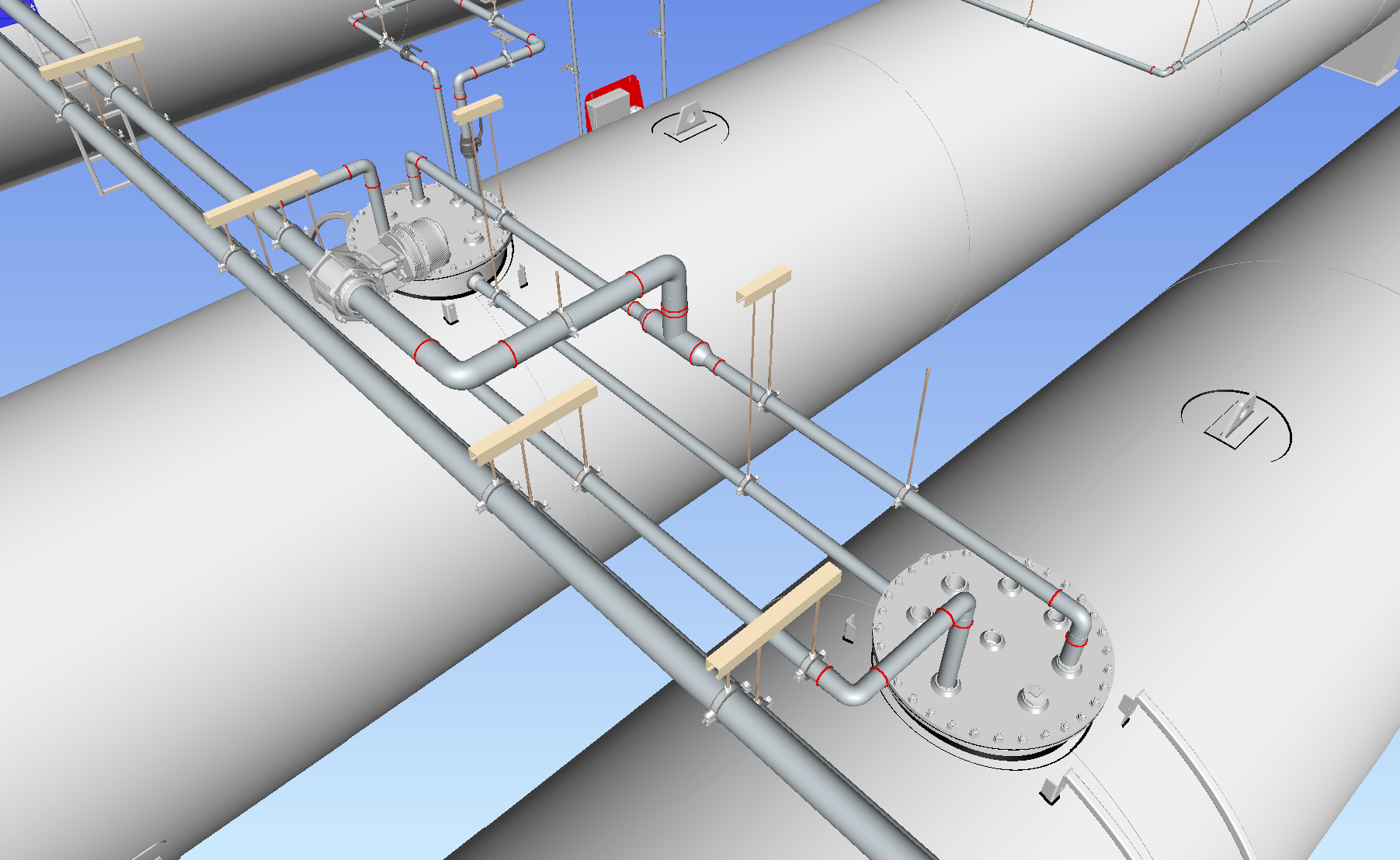

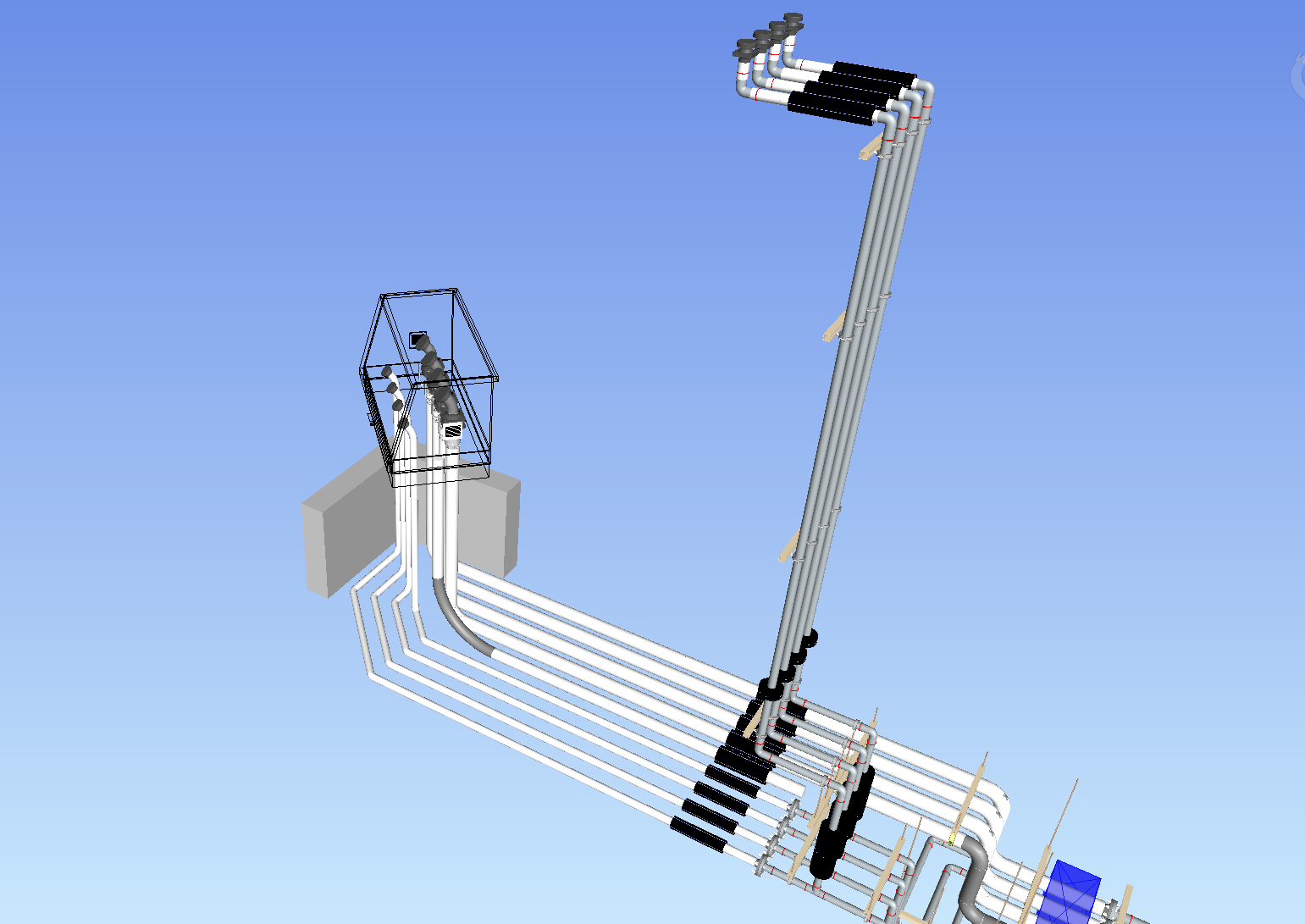

Fuel System

Comprehensive fuel system modeling including storage tanks, piping networks, pumps, and distribution systems. Fully coordinated with building infrastructure.

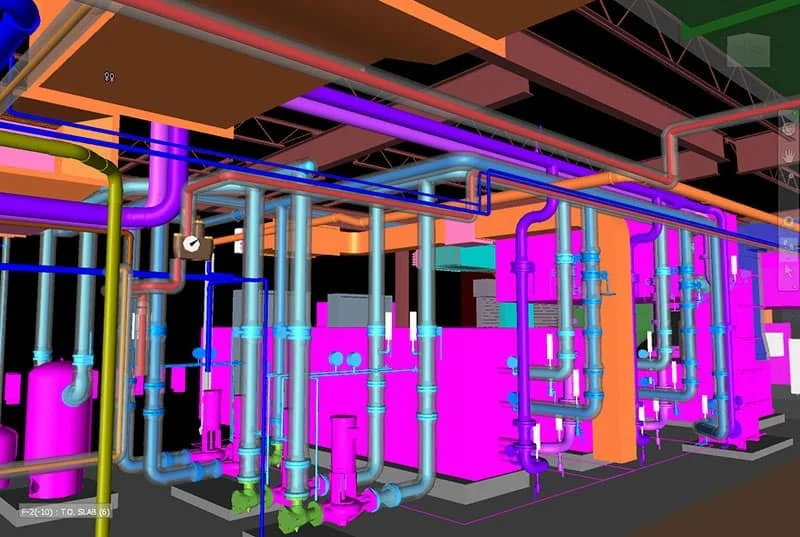

Mechanical Pipework

Comprehensive mechanical pipework modeling including:

• • Comfort Cooling Systems
• • Critical Cooling Systems
• • DX Refrigeration Systems

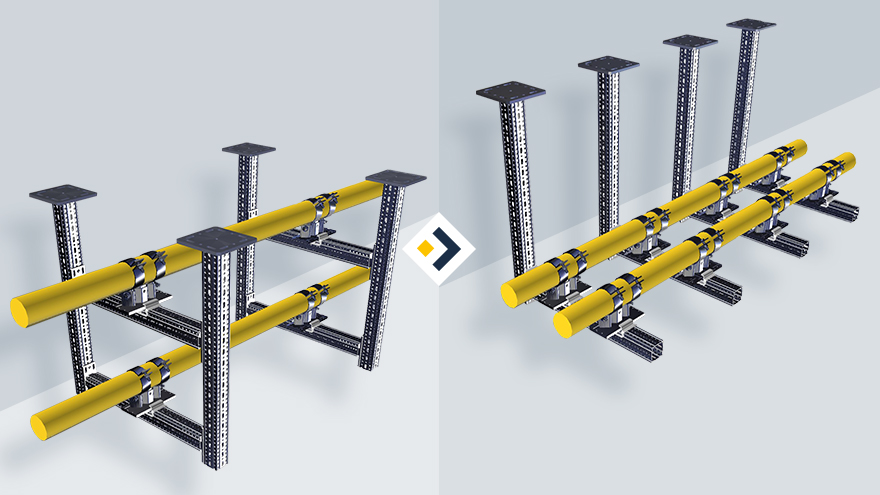

Mechanical Supports Package

Detailed modeling of mechanical support systems including:

• • Structural Supports
• • Sikla Supports
• • Hilti Supports
• • And other support systems

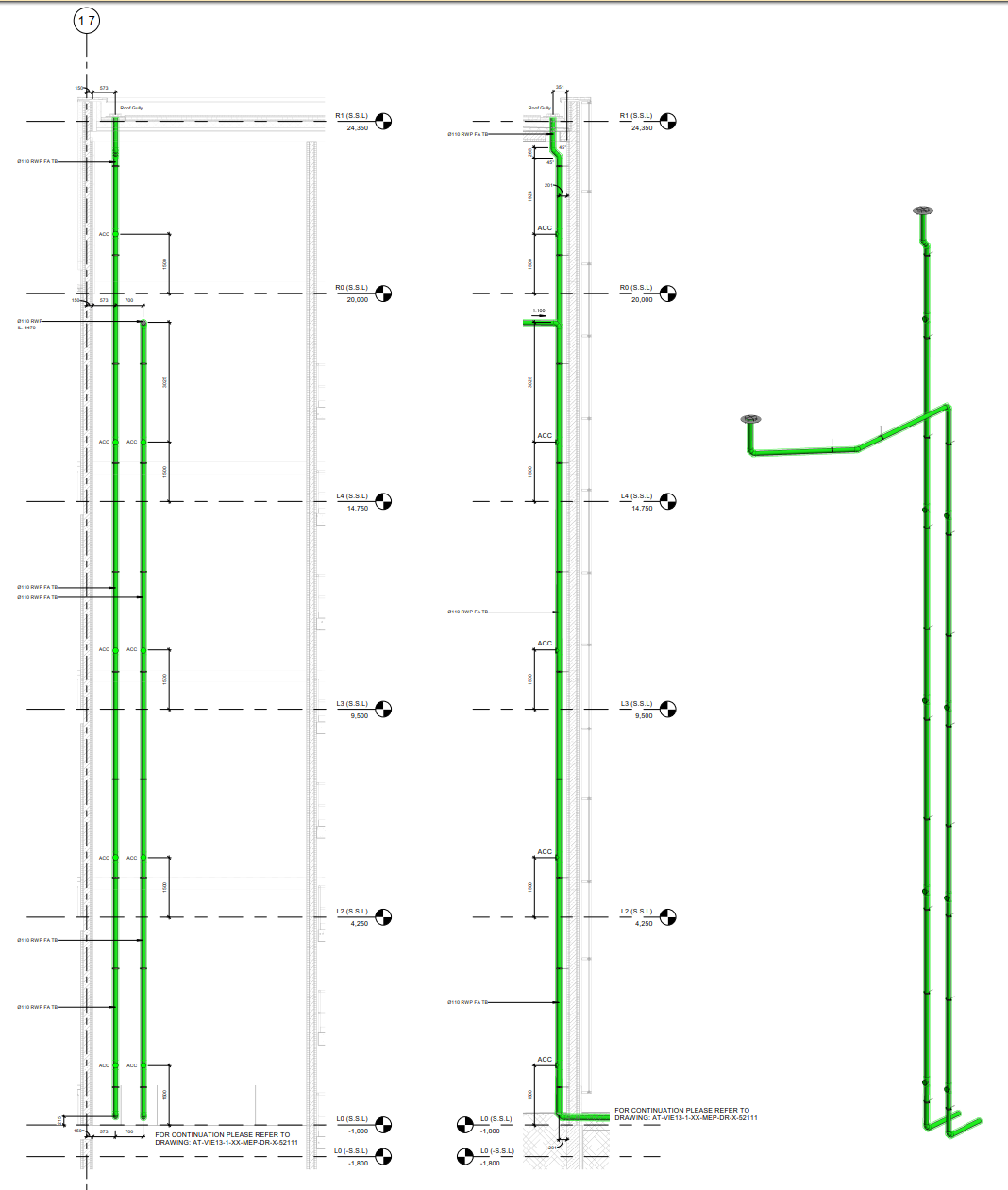

Rainwater Systems

Complete rainwater harvesting and drainage modeling including gutters, downspouts, collection systems, and attenuation tanks. Sustainable and efficient design.

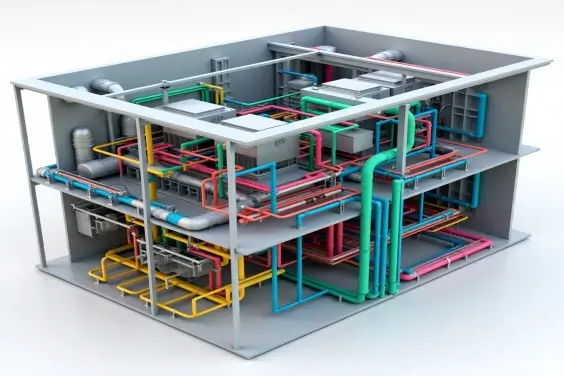

Ventilation Package

Complete BIM modeling of ventilation systems including ductwork, diffusers, grilles, and air handling units. Fully coordinated with architectural and structural elements.
